Spool wheel:800/1000/1200mm
Take-up spool:800/1000/1200mm
Motor power:2.2 KW
Maximum speed:DV 120

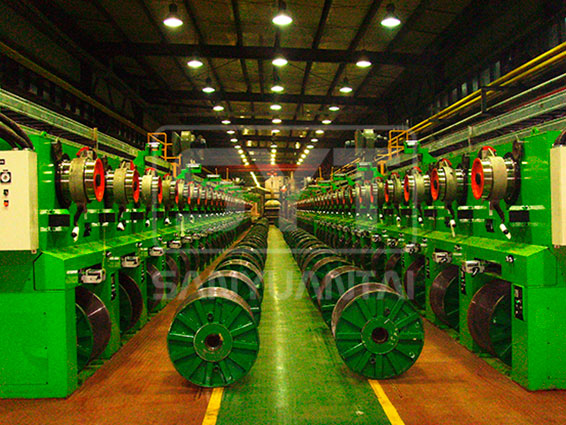

Pay-off Machine is used in paying out the wires to the related machine. Take-up Machine is used in taking up the wires from the related machine into Spool or Coil. They are usually used with Drawing machine, Stranding machine, Wrapping machine, Rewinding machine, Pickling Line etc..
| NO | Item | Technical Parameter |
| 1 | Spool wheel | 800/1000/1200mm |
| 2 | Take-up spool | 800/1000/1200mm |
| 3 | Motor power | 2.2 KW |
| 4 | Maximum speed | DV 120 |
| 5 | Change wheel mode | Non-stop change wheel |
Bear the weight of 2.5 tons wire rod, pay off the wire continuously, involve the button of start, stop,emergency stop.
We can put the line machine design and manufacture according to different types of customer requirements
