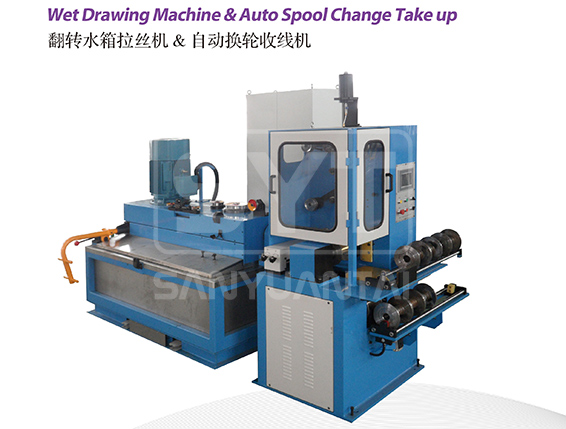

Your are here: Home > Products > Wet Drawing Machine > Turn Over Wet Drawing Machine&Auto Spool Change Take Up
Inlet Wire Dia:ø0.9~2.5 mm
Outlet wire Dia:ø0.15 ~ ø0.41mm
Speed:Max. 1300m/min
Owing to the structure restriction of this wire drawing machine, it is more suitable for drawing wires of smaller diameters.
Wet wire drawing machine is available for drawing mild steel, carbon steel, stainless steel, copper, aluminum and alloys.
| NO | DETAIL CONTENT | TECHNICAL DATA |
| 1 | Max Dies Quantity | 21、23 Dies |
| 2 | Main motor power | 15-22-30 KW |
| 3 | Take-up motor power | 5.5 KW |
| 4 | Wire inlet strength | ≤1280 Mpa |
| 5 | Iniet wire dia | ø0.9 ~ ø2.5mm |
| 6 | Finish wire dia | ø0.15 ~ ø0.41mm |
| 7 | Max speed | Max. 1300m/min |
| 8 | Lubrication type | Intrusive |
| 9 | Dimensions | 2640mm*1600mm*1880mm |
| 10 | Weight | 4.0 T |
