Product Structure:2+2/1×2/1×3
Bobbin dia:305 mm
Take-up spool:B40/B60/B80
Speed:Max 5000RPM
Our Stranding machine(Strander) is normally used for steel cord, steel rope production line.

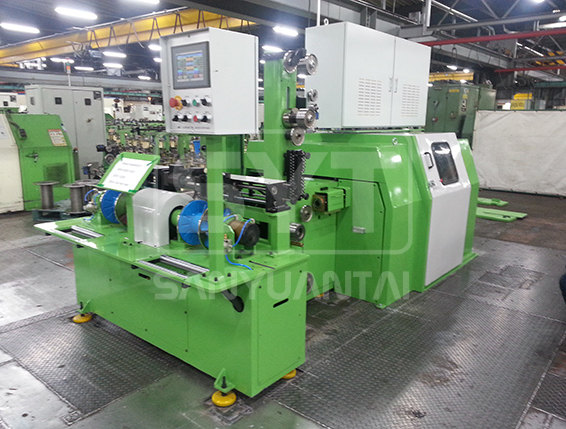

The double twist stranding machine is specifically designed for the manufacture of high quality steel strands. The range of machines allows the user to produce, using the double twist process,from 2 up to 15 wires.
| NO | Equipment Type | TD2 |
| 1 | Product Structure | 2+2/1×2/1×3 |
| 2 | Bobbin dia | 305 mm |
| 3 | Take-up Spool | B40/B60/B80 |
| 4 | Main motor power | 5.5 KW |
| 5 | Take-up motor power | 2.2 KW |
| 6 | Max speed | 5000RPM |
Product Structure:2+2/1×2/1×3
Bobbin dia:305 mm
Take-up spool:B40/B60/B80
Speed:Max 5000RPM
Model:RHC/6/9/15
Diameter of the wheel:450/600 mm
Take-up spool:B40/B60/B80
Speed:Max 4000 rpm
Main motor power:11KW
OT motor power:1.5KW
Take-up spool:B40/B60/B80
Speed:6000RPM
Main motor power:11KW
OT motor power:1.5KW
Take-up spool:B40/B60/B80
Speed:Max 4500RPM
Model:2+2/1×2/1×3
Bobbin dia:305 mm
Take-up spool:B40/B60/B80
Speed:Max 5000 rpm
