Block Dia: SSD300-1200mm
Intel wire Dia: Ø 1.4-14mm
Outlet Wire Dia: Ø 0.3-9.0mm
Speed: Max 1000m/min

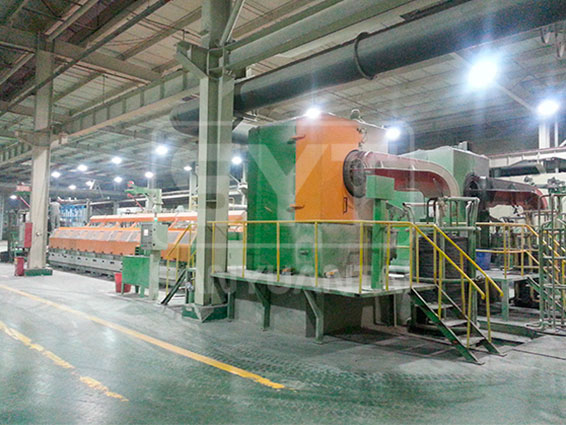

Straight line wire drawing machine is available for drawing welding wires (flux cored wire, submerged-arc welding wire, pas-shielded welding wire), steel wires (low, medium and high carbon steel wire), SS wire, spring wire, prestressed steel wire, hose wire, tire wire, steel cord and electric wires (copper wire, aluminum wire) and alloy steel wire and other metal wires.
| NO | Block Dia(mm) | 160/200/250 | 300 | 400 | 450 | 500 | 560 | 610 | 710/760 | 900 | 1200 |
| 1 | Iniet wire dia | 2 mm | 2.6 mm | 3.5 mm | 4 mm | 4.2 mm | 5.5 mm | 7.0 mm | 9.0mm | 13.0mm | 20 mm |
| 2 | Max speed | 1800 m/min | 1800 m/min | 1800 m/min | 1500 m/min | 1500 m/min | 1500 m/min | 1200m/min | 900 m/min | 600 m/min | 600 m/min |
| 3 | Main motor power | 15 KW | 22 KW | 30 KW | 37 KW | 55 KW | 55 KW | 55 KW,75KW | 75KW | 110KW | 160KW |
| 4 | Max total wire reduction (%) | 94% | 94% | 94% | 94% | 94% | 94% | 94% | 94% | 94% | 94% |
| 5 | Wire inlet strength | ≤ 1350 | ≤ 1350 | ≤ 1350 | ≤ 1300 | ≤ 1300 | ≤ 1300 | ≤ 1300 | ≤ 1300 | ≤ 1300 | ≤ 1100 |
| 6 | Pay-off Type | Coilers pay off 、 Horizontal Type、 Vertical Type； | |||||||||
| 7 | Take-up Type | Horizontal Type、 Vertical Type、 Z-Coiler； | |||||||||
